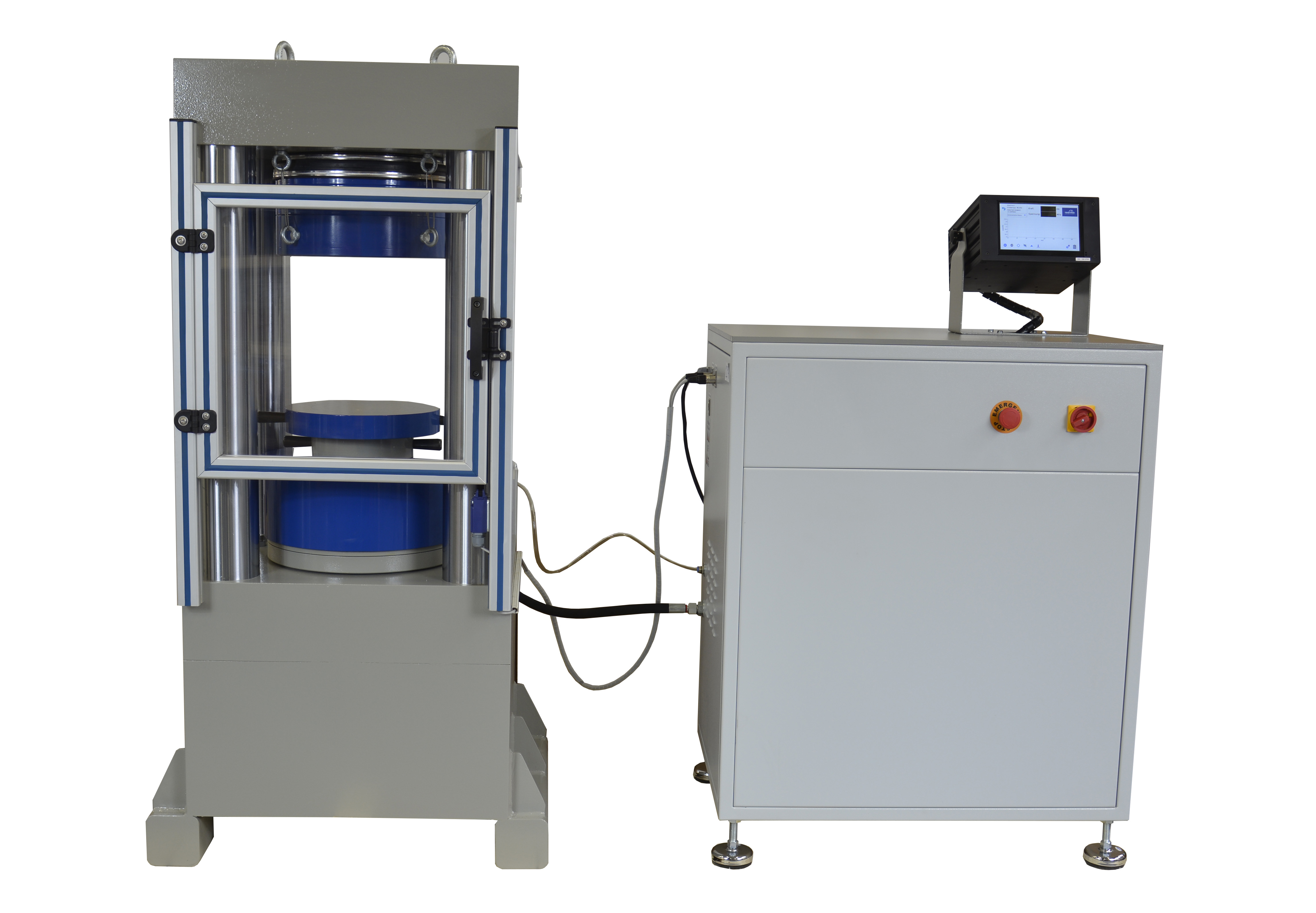

3000kN Digitale Automatische Compressie Machine compleet klasse 1,
met afstandstukken voor het drukken van 150mm kubussen en 150 x 300mm cylinders
Het frame kan worden vastgeschroefd op een stabiele ondergrond en is voorzien van een veiligheidscherm
Volautomatische machine
volledige gefabriceerd in Duitsland. Voorzien van de nodige CE-veiligheidskenmerken
gewicht 1580 kg, 220-240 V, mono fase, 50 Hz,
Compression testing machine 3000 kN
EN 12390, ASTM C39
Class 1 acc. to DIN EN ISO 7500-1
2 parts, consisting of a test frame and a separate control unit
Compact test frame 3000 kN
4-column frame, painted
Straintest acc. to EN 12390-4
Compression range 0...3000 kN
Class 1 measuring range 100 kN to 3000 kN
Other gradations of class 1
measuring ranges on request.
Compression plates dia. 300 mm
with sample centering on the lower pressure plate
Test chamber size 340 mm
Piston stroke 50 mm
Distance between columns front/side 340/270 mm
Including protective grid and impact proofed acrylic glazing
With automatic break detection and piston stroke limiter
Distance platens for the follwing samples are included: cubes length = 200, 150 mm;
Cylinder height = 320, 300 mm can be tested without distance pieces;
Distance platens for cubes 100 mm on demand.
Control electronics with touch display
Provides fully automatic experimental procedures with predetermined rate of loading,
Force controlled tests and reading the measurement data
Including automatic break detection
Hydraulic Station
powerful radial piston pump
Pmax = 500 bar, Q = 1,5 l/min
with oil tank 15 l capacity
Incl. safety and control valves
Main switch and emergency STOP
Pressure control by frequency changer
Electric control cabinet
electrical main switch with undervoltage release and emergency stop switch (installed in the work table)
Dimensions
Frame 3000 kN approx. 760 x 610 x 1570 mm (incl. base)
Control unit approx. 800 x 550 x 1290 mm
Weight approx. 1580 kg
230 V / 50-60 Hz
vervallen Recupel 09.51 Laboratoriumapparatuur
Handleiding bijvoegen
