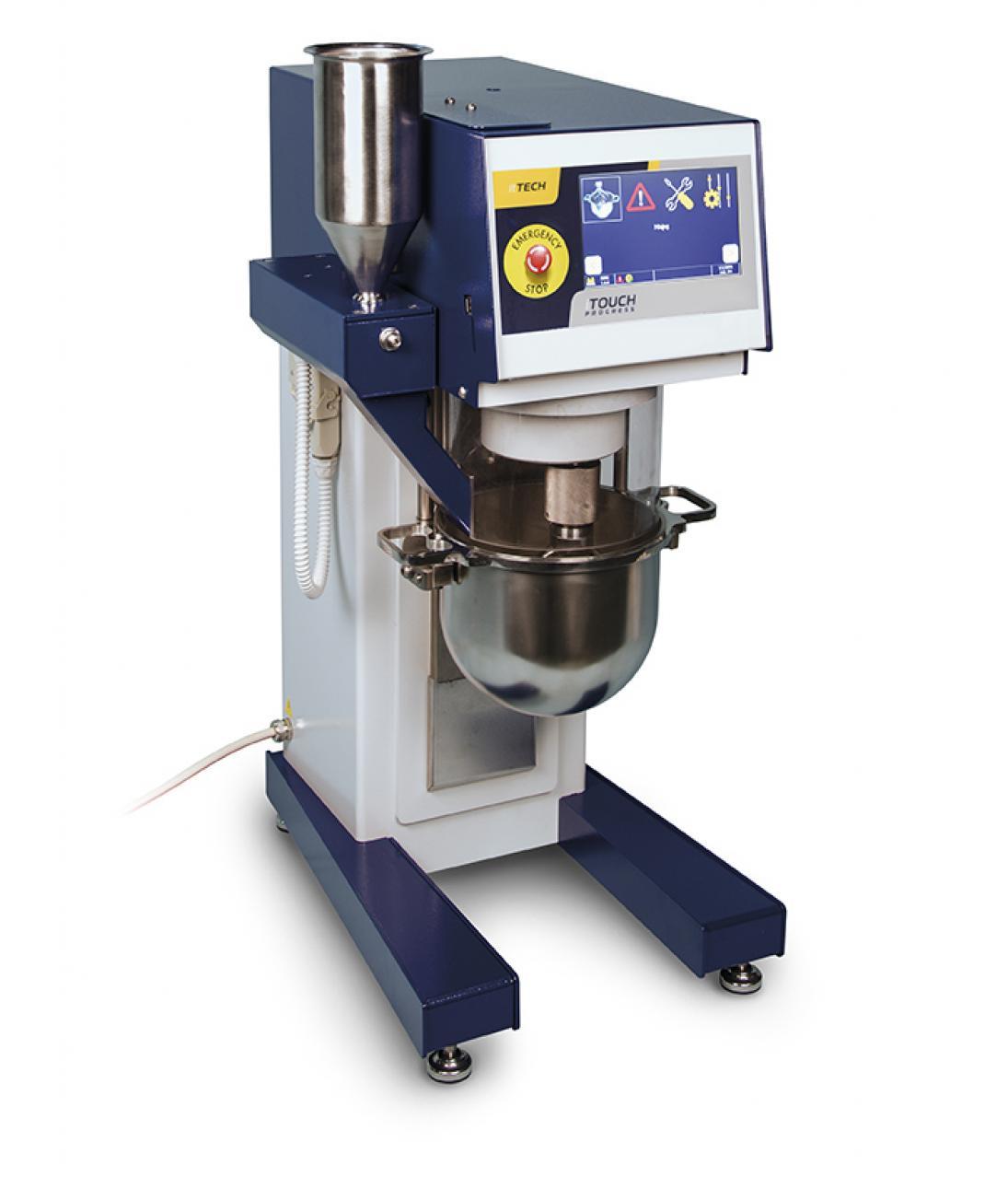

E092M-KIT Mixmatic, automatische en programeerbare mixer EN 196-1

Aantal:
v
Toevoegen
E092M-KIT
Mixmatic, automatische en programeerbare mixer
volgens EN 196-1, EN 196-3, EN 413-2, EN 459-2, EN 480
stevige uitvoering voor intensief labogebruik
planetaire overbrenging voor geruisloos en onhoudsvriendelijk gebruik
met automatische zandinvoer zonder afscheiding tussen fijn en grof materiaal
instelbare variabele snelheden
verschillende programeerbare mixer cycli volgens de verschillende normen
3 mixing cycli kunnen zelf worden geprogrammeerd
met inox mixerkuip en beater


AUTOMATIC PROGRAMMABLE COMPUTERIZED MORTAR MIXER HIGH PERFORMANCE

Mixmatic has an extremely sturdy fabricated frame for an intensive laboratory use. Complete with stainless steel polished beater, mixing bowl and automatic sand dispensers having dimensions and geometry to grant the correct sand insertion, without residual and disaggregation between fine and coarse portions.

Main Features
Rugged design
Planetary transmission for silent and low maintenance operation.
Transparent CE-conform protection of the mixing area, to allow the mixture looking during the test.
Digitally controlled rotation speed.
Easy and fast bowl insertion and removal.
Safety system of bowl presence and correct position to avoid dangerous working, with double sensor of removed bowl with load/unload sequential discrimination.
Emergency stop button.

Power supply: 230V 50-60Hz 1ph
Dimensions: 580x570x830 mm
Weight: 85 kg approx.



Firmware:

Different automatic programmable mixing cycles conforming to the a.m. Standards.
Possibility to program up to 30 automatic personalized mixing cycles, easy to set through Touch Screen.
Synchronised acoustic signals with cycle steps.
Electronic control unit with touch screen colour display, that runs like a standard PC based on Windows operating system for the management and analysis of the data, test results, graphs.
Direct connection to Intranet (connection to a LAN network) and Internet to establish a remote communication
Unlimited memory storage with: 2 USB ports, 1 SD card slot, RS232/485 serial port.
Rotational motor feeded through inverter to grant the max. precision of the rotational speed, adjustable by the operator on the display.
Possibility of manual mixing cycle.
Possibility to select different languages.
Detailed indication of all the times (elapsed from the test start, residual to end test, elapsed from and test and bowl removal), state of cycle development with analogue bar, speed, active phase (sand, water), test state (correct execution or test interruption with lost results), type of current test.
