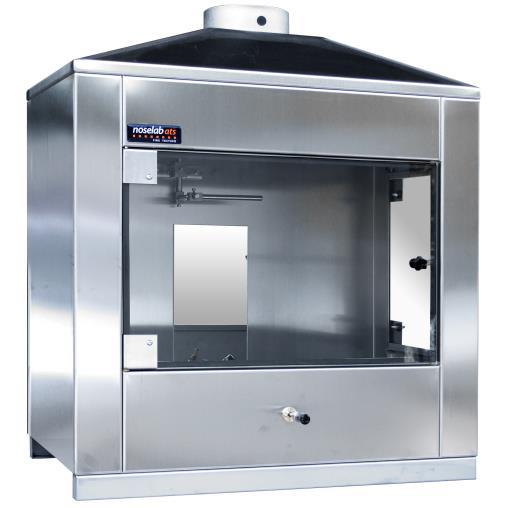

AA06 - Small Burner Box
EQUIPMENT FOR FIRE REACTION WITH SMALL FLAME
It enables to determine the ignitability of building products.
A small flame is applied to the surface and the bottom corner of the sample in vertical position.
Standards:
EN ISO 11925-2 DIN 4102-1 UNI 8456/ 8457
Standard configuration includes:
Combustion chamber in stainless steel, provided with 2 glass doors for observation of test,
Bottom made of metal grid mesh
Burner for propane with micro valve for flame adjustment
Device to reach 90° rotation of the sample holder
Flame height measuring device (20mm)
2 flames spacers (16mm,5mm)
Mirror
Tray and Filter paper ( 50 pcs) 50 x 100 mm
Data to be measured:
Post-ignition time
Post-glowing time
The extent of damaged area
Whether there is any flaming or glowing debris
General:
Overall dimension: 400 X 700 X 800 h
Net Weight: Kg 35
