B045-01

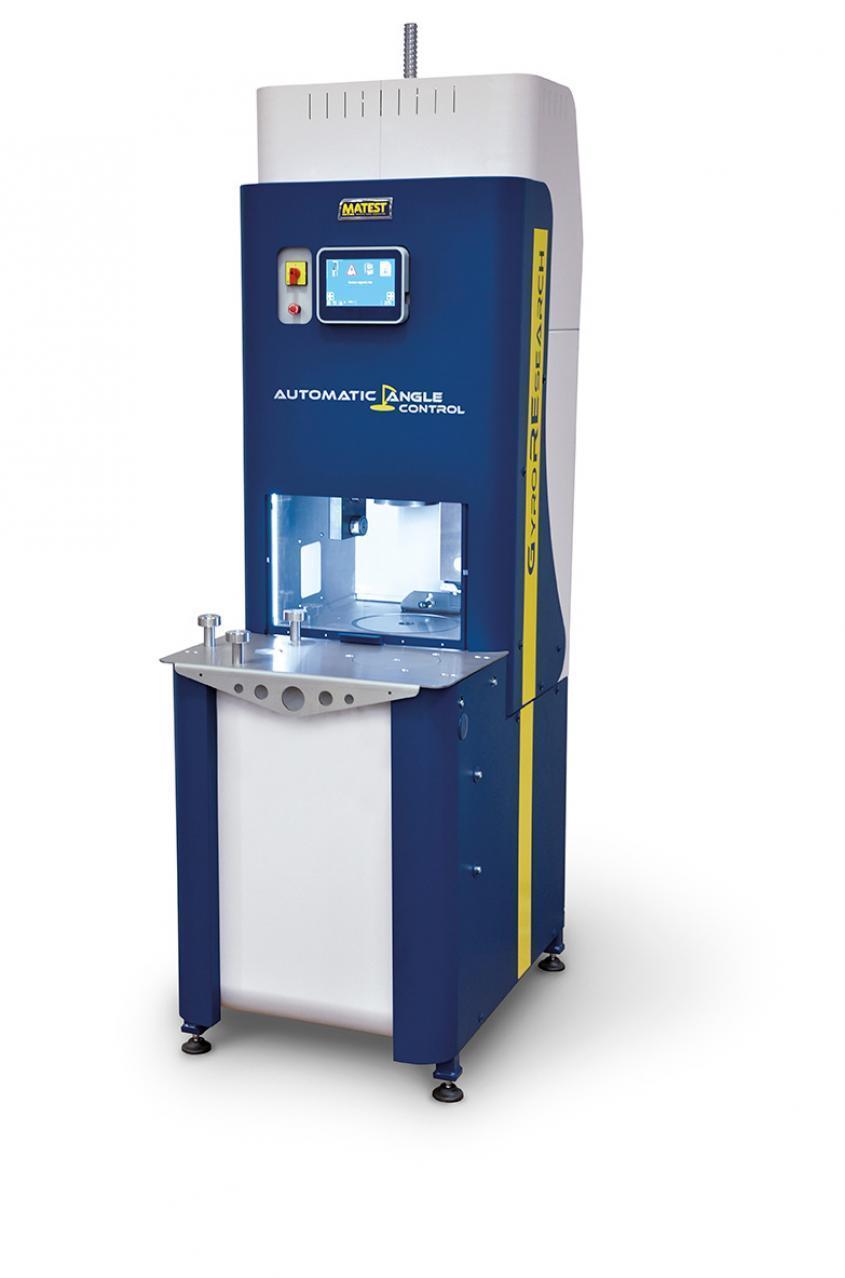

GyroResearch - Gyratory compactor ( Asphalt )
EN 12697-10 EN 12697-31 ASTM D6925 AASHTO T312 SHRP M-002 ASHTOO TP4 AS/NZS 2891.12.1 ASTM D7229
Used for research purposes, this electromechanical compactor allows for the adjustment of the gyratory angle, selectable in a range between 0° and 3°, during compaction, real-time direct shear and torque measurement.

MAIN FEATURES

Rigid steel frame ensuring excellent angle control.
Full colour 7” touch screen control unit, running like a standard PC.
Software for PC control acquisition and data processing.
Integrated shear stress measurement.
Automatic adjustment of the gyratory angle is defined by the user.
Optional integrated electromechanical extruder.
Gyration rate from 3 to 60 (other speeds available on request).
Max consolidation pressure according to the specimen size:
Ø 150 mm 1100 kPa
Ø 100 mm 2300 kPa
