B045EN

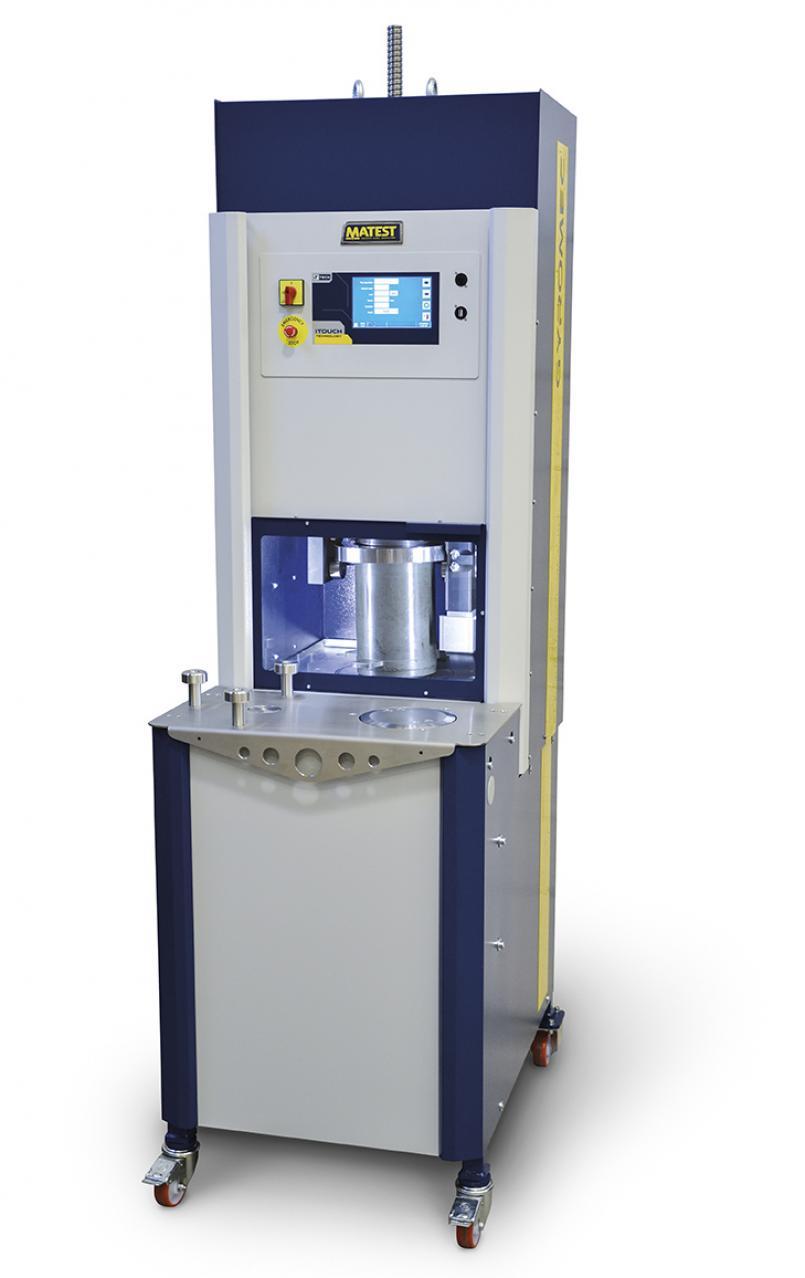

Gyromec - Electromechanical Gyratory Compactor
( Asphalt )
ASTM D6925 AASHTO T312 SHRP M-002 ASHTOO TP4 AS/NZS 2891.12.1 ASTM D7229 EN 12697-10 EN 12697-31
Gyromec is an electromechanical gyratory compactor. The load is applied by an electro-mechanical cylinder with a load cell positioned directly on the vertical actuator for precise load measurement.
It is used to simulate and reproduce real compaction conditions and actual road paving to determine the compaction properties of asphalts in compliance with ASTM, EN and AS standards.
Useful for both quality control of concrete as well as in research and product development.
The machine can also perform automatic final flattering cycles at zero angles to obtain specimens with perpendicular faces.

MAIN FEATURES

Rigid steel frame ensuring excellent angle control.
Full colour 7” touch screen control unit, running like a standard PC.
Software for PC control acquisition and data processing.
Electronic angle positioning.
Dual angle option with double calibration AASHTO, EN and AS at 2 and 3.
Optional integrated electromechanical extruder.
Optional integrated balance.
Max consolidation pressure according to the specimen size:
Ø 150 mm 1100 kPa
Ø 100 mm 2300 kPa
B045EN Same model as B045 but in compliance with EN Standards.
